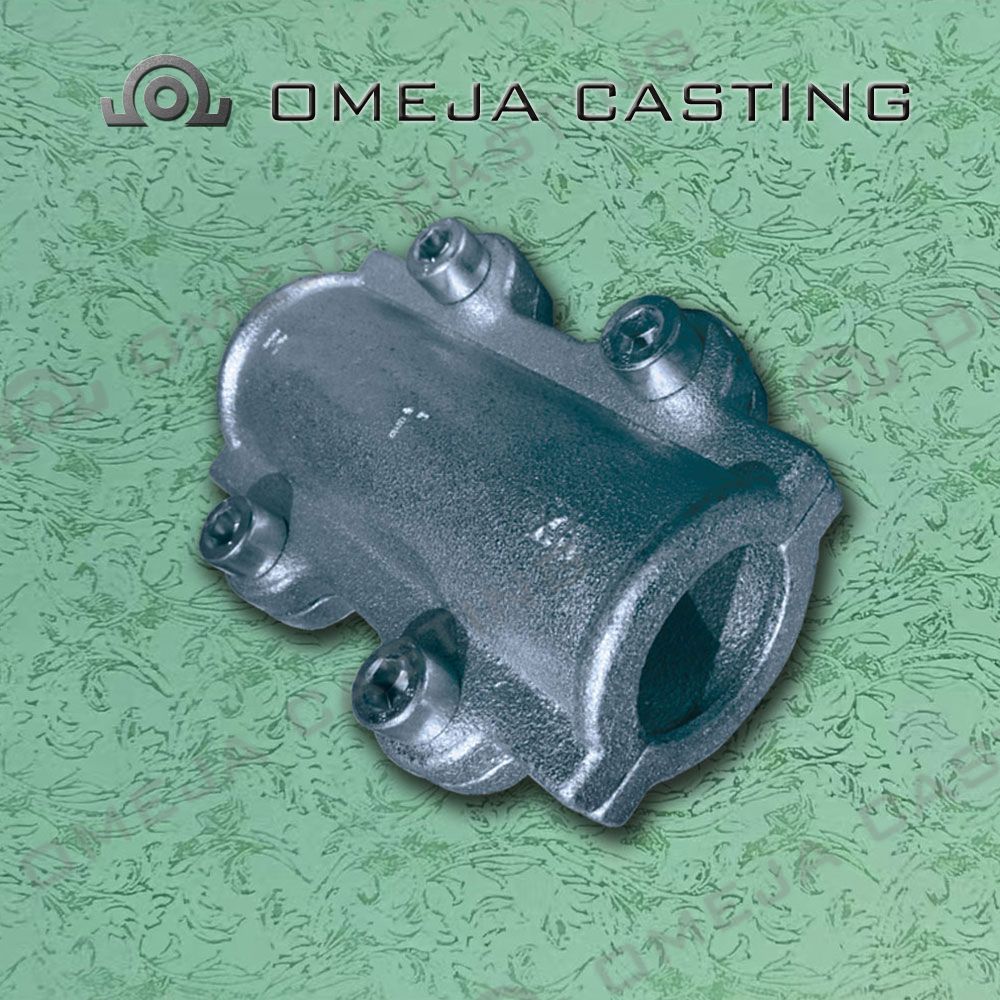

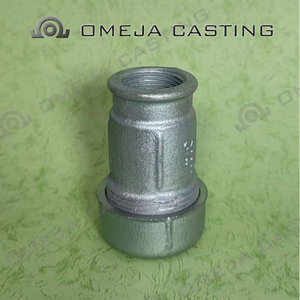

the universal compression fitting line in cast iron.
Available for steel pipes ranging from 1/2 "to 2", black steel boiler-type pipes from 20 mm to 63.5 mm, and PE pipes from 20 mm to 63 mm.
Repair existing pipes and install new lines for various applications.
1. The pipe end to be connected must be cut vertically along the axis, free of sharp edges and not deformed. Remove dirt and any remaining paint.

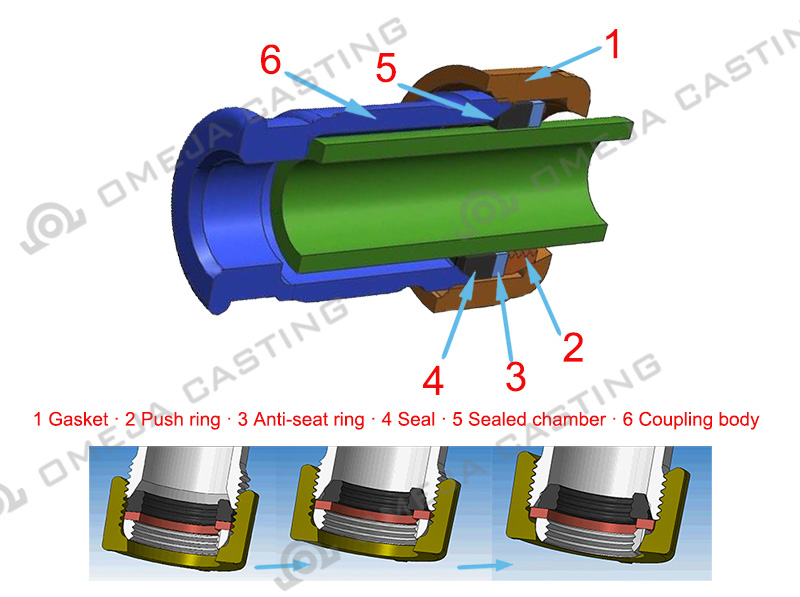

2. Gira (1), Push ring (2), Anti-slip ring (3), and Gasket (4) to be installed on the pipe terminal as shown.
3. Position the gasket (4) at least 10 mm from the tube end.
4. Insert the tube terminal with the individual components into the hermetically sealed chamber (5) of the connector body (6). Check that the position is optimal.
5. Tighten the gasket (1) with the coupling body (6). Avoid twisting the pipe.
STEEL PIPE:
Acqua: max. 25°C/max. 10 bar
Heating water: max. 80°C/max. 6 bar
Aria compressa: max. 10 bar
Gas (outside buildings) only for steel pipes according to DIN EN 10255 and DIN EN 10220 series 1: ambient temperature from -20 °C to +60 °C.
max. 5 bar
PE PIPE:
Water max. 20°C/max. 10 bar (mandatory use of reinforcement cores)
THREADING STANDARD: ISO 7/1 | ||||||
PIPE SIZE | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
TUBE DE-Ø [mm] | 19.7– 21.8 | 24.6– 27.3 | 31.4– 34.2 | 40.0– 42.9 | 47.9– 51.5 | 59.7 – 63.6 |
