Tube clamp modular playground equipment is becoming increasingly popular for outdoor parks, schools, and fitness areas. A tube clamp system allows steel pipes to be securely connected using strong cast fittings, creating durable structures such as playground frames, obstacle courses, monkey bars, and calisthenics training equipment.
Modern playground designers prefer tube clamp construction systems because they provide flexibility, easy installation, and long-term durability. With high-quality tube clamp fittings, different structures can be assembled using steel pipes without welding, making them ideal for modular playgrounds and outdoor fitness structures.
This article explores how tube clamp systems are used in modular playground construction, their advantages, technical specifications, and why they are widely used in modern outdoor equipment.
A tube clamp system is a modular structural connection system used to join steel pipes with strong clamp fittings. These clamps are usually made from cast iron or ductile iron and are tightened with bolts to securely connect pipes at different angles.
Tube clamp systems are widely used in:
playground equipment frames
outdoor fitness structures
handrail systems
scaffolding and safety barriers
industrial pipe structures
Because the system does not require welding, installation is fast and flexible.

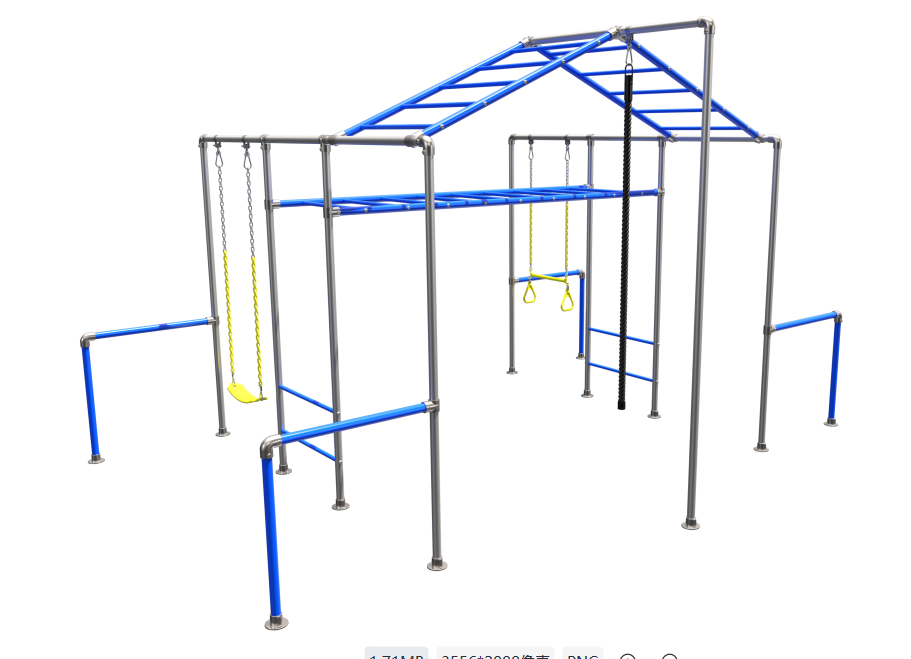

The modular structure in the image demonstrates several common applications of tube clamp pipe structures.
Tube clamp fittings allow builders to create monkey bars, climbing ladders, and overhead frames for children's playgrounds.
Many public parks install calisthenics training structures made from steel pipes connected by tube clamps.
Tube clamp systems are widely used to build training obstacles such as rings, ropes, and suspended bars.
Schools use modular tube clamp frames for physical training and recreational playground equipment.
Tube clamp fittings allow structures to be assembled in multiple configurations without welding.
Cast iron clamps provide strong pipe connections capable of supporting heavy loads.
The clamp system only requires bolts and simple tools, reducing installation time.
Galvanized clamps and steel pipes provide corrosion resistance for outdoor environments.
Additional components can be added easily to expand the structure.
| Feature | Tube Clamp Structure | Welded Structure |
|---|---|---|
| Installation | Fast assembly | Requires welding |
| Flexibility | Highly modular | Fixed design |
| Maintenance | Easy replacement | Difficult repair |
| Expansion | Easy to expand | Limited |
| Cost Efficiency | Lower installation cost | Higher labor cost |
Because of these benefits, many modern playgrounds use tube clamp modular systems.
| Parameter | Specification |
|---|---|
| Material | Ductile iron / cast iron |
| Surface Finish | Hot dip galvanized |
| Pipe Diameter | 26.9 mm / 33.7 mm / 42.4 mm / 48.3 mm |
| Connection Type | Bolt tightening clamp |
| Load Capacity | High structural strength |
| Application | Playground / fitness structures |
These specifications ensure strong and reliable pipe connections.
A typical tube clamp playground structure includes several elements.
Connect steel pipes at different angles.
Provide the main structural frame.
Rings, ropes, ladders, and swings.
Secure the structure to the ground.
When selecting tube clamp fittings, buyers should consider several factors.
Choose ductile iron clamps for higher strength and durability.
Hot-dip galvanizing improves corrosion resistance.
Ensure clamps match the steel pipe diameter.
Professional manufacturers ensure consistent quality and safety.
Tube clamp fittings are used to connect steel pipes to build structures such as handrails, playground equipment, scaffolding, and fitness frames.
Most clamps are made from ductile iron or cast iron with galvanized surface treatment.
Yes. Properly designed tube clamp structures provide strong and stable connections suitable for playground and fitness equipment.
Common pipe sizes include 26.9 mm, 33.7 mm, 42.4 mm, and 48.3 mm.
Yes. Tube clamp systems are modular, allowing easy expansion or modification.
A tube clamp modular structure system provides an efficient and flexible solution for building playground equipment, outdoor fitness structures, and obstacle training courses. With strong cast fittings, easy installation, and modular design, tube clamp systems offer significant advantages over traditional welded structures.
As outdoor recreation and fitness spaces continue to grow, tube clamp playground structures will remain an important solution for safe, durable, and customizable equipment.
