In the world of pneumatic systems, certain components achieve legendary status through their simplicity, durability, and universal applicability. The Chicago coupling—also known as the Air King, universal coupling, or Chicago style fitting—is precisely such a component. For decades, these robust connectors have been the workhorse of heavy-duty pneumatic applications, from construction sites with jackhammers to industrial manufacturing facilities running continuous operations.
At OMEJA CASTING, we combine decades of metallurgical expertise with precision manufacturing to produce premium Chicago couplings from high-grade ductile iron. This comprehensive guide explores everything you need to know about these essential fittings—from their unique design philosophy and dimensional specifications to material science and application best practices.

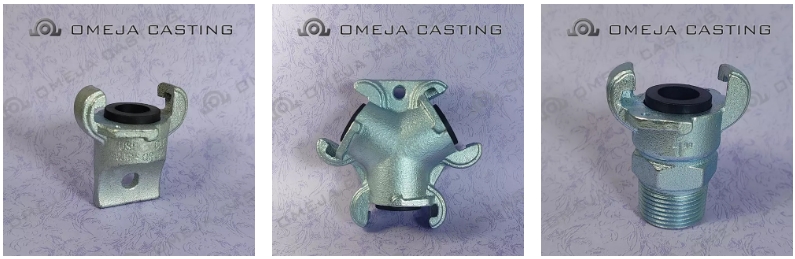

What is a Chicago Coupling?
The Universal Design Philosophy
Material Science: Why Ductile Iron Matters
Complete Size and Dimension Guide
Technical Specifications and Performance Data
Interchangeability and Compatibility
Applications Across Industries
Installation and Maintenance Best Practices
Safety Features and Considerations
Frequently Asked Questions
Why Choose OMEJA CASTING
A Chicago coupling is a type of universal air hose fitting characterized by its distinctive two-lug or four-lug "claw-style" head design. Unlike traditional threaded connections that require wrenches and careful alignment, Chicago couplings employ a simple quarter-turn locking mechanism that allows for rapid connection and disconnection without tools.
The Chicago coupling is easily recognizable by several distinctive characteristics:
Sexless Hermaphroditic Design: Both ends of the connection are identical—there is no traditional male versus female configuration. Any Chicago coupling can mate with any other Chicago coupling of the same lug configuration, regardless of brand or underlying hose size.
Quarter-Turn Locking: Connection requires only a push and a quarter-turn to lock securely in place. Disconnection involves retracting the locking sleeve and twisting in the opposite direction.
Two-Lug and Four-Lug Variants: Smaller sizes such as one inch and under feature a two-lug design, while larger sizes from one and one-quarter inches to two inches utilize a four-lug configuration for enhanced strength and stability.
Universal Compatibility: The coupling is called universal because the same lug head design is used across all sizes from one-quarter inch to one inch for two-lug versions, allowing different hose sizes to be connected directly.
The Chicago coupling goes by several names depending on region and industry. It is frequently called Air King Coupling, which was the original brand name that became synonymous with the product. In many regions it is known as Chicago Style Fitting, a regional designation reflecting its historical manufacturing origins. Some industries refer to it as Universal Air Hose Coupling, a descriptive name highlighting its cross-compatibility. It may also be called Twist-Claw Hose Coupling, describing the locking mechanism, or Two-Lug Coupling, a technical designation based on lug count.
The genius of the Chicago coupling lies in its elegant simplicity. Unlike other coupling systems that require specific matched pairs, the Chicago system was designed from the ground up for universality.
The connection mechanism consists of three primary components. Interlocking lugs on identical coupling faces engage when twisted. The two-lug design creates a backwards J shape when viewed from the side. A compression gasket made of rubber or elastomeric material sits recessed in the coupling face. When the lugs engage, they draw the faces together, compressing the gasket to create an airtight seal. A spring-loaded locking sleeve automatically engages when the coupling reaches the locked position, preventing accidental disconnection. To disconnect, the user slides the sleeve back and gives a quarter-turn in the opposite direction.
The sexless universal design offers several significant benefits. Simplified inventory management results from the fact that all Chicago couplings mate with each other, so facilities need only stock one type of fitting rather than maintaining separate inventories of male and female connectors. Cross-size connectivity means that a one-inch Chicago coupling will physically connect to a one-half inch Chicago coupling. While flow will be restricted by the smaller size, the mechanical connection remains secure—a feature unique to this coupling system. Tool-free operation through the quarter-turn mechanism makes it ideal for applications requiring frequent connection changes. Visual and tactile confirmation provides positive feedback that a secure connection has been achieved.
The original Air King design has been refined over decades but maintains the core dimensional standards that ensure cross-manufacturer compatibility. OMEJA CASTING manufactures Chicago couplings that conform to these established industry standards while leveraging modern metallurgy and precision machining for enhanced performance.
While Chicago couplings are manufactured in various materials including brass, standard carbon steel, and stainless steel, the choice of material fundamentally determines performance, longevity, and safety. At OMEJA CASTING, we specialize in ductile iron Chicago couplings, offering distinct advantages over conventional alternatives.
| Material Property | Standard Carbon Steel | Brass | Stainless Steel | OMEJA CASTING Ductile Iron |
|---|---|---|---|---|
| Tensile Strength | 400-550 MPa | 200-300 MPa | 500-700 MPa | 450 MPa or greater |
| Yield Strength | 250-400 MPa | 100-250 MPa | 200-500 MPa | 310 MPa or greater |
| Elongation | 15-25 percent | 10-30 percent | 30-60 percent | 10 percent or greater |
| Impact Resistance | Good | Moderate | Excellent | Excellent |
| Corrosion Resistance | Poor requires coating | Good | Excellent | Excellent with proper coating |
| Hardness Brinell | 120-180 | 80-150 | 150-300 | 150-230 |
| Cost Efficiency | Moderate | Moderate | High | Optimal lifecycle value |
Ductile iron, also known as spheroidal graphite iron or nodular iron, derives its name from its unique microstructure. Unlike traditional cast iron which contains sharp graphite flakes that can initiate cracks under stress, ductile iron features graphite in spherical nodules. This structure delivers critical advantages for Chicago couplings.
Superior strength-to-weight ratio is achieved as OMEJA CASTING's ductile iron Chicago couplings attain tensile strengths exceeding four hundred fifty megapascals while maintaining practical weight. This means you get strength comparable to steel without unnecessary bulk that can make handling difficult.
Exceptional fatigue resistance results from ductile iron's nodular graphite structure inhibiting crack propagation, allowing our couplings to withstand millions of pressure cycles without failure in pneumatic systems where pressure fluctuations and mechanical vibrations create cyclic stresses.
Outstanding vibration damping occurs because equipment-mounted Chicago couplings experience constant vibration from compressors, jackhammers, and other heavy tools. Ductile iron's internal structure absorbs vibrational energy, preventing the loosening of locking mechanisms and reducing wear on mating components.
Reliable performance in extreme conditions is ensured as OMEJA CASTING ductile iron Chicago couplings operate reliably across a wide temperature range from negative twenty degrees Fahrenheit to one hundred sixty degrees Fahrenheit, or negative twenty-nine degrees Celsius to seventy-one degrees Celsius, while maintaining integrity under high-pressure conditions.
Enhanced safety margin is provided because in applications where a coupling failure could cause hose whip or flying debris, ductile iron's combination of strength and ductility provides a crucial safety advantage. Our couplings deform gradually under extreme overload rather than shattering catastrophically.
While ductile iron offers excellent mechanical properties, OMEJA CASTING enhances corrosion resistance through advanced surface treatments. Zinc plating serves as the standard finish, providing excellent corrosion protection for general industrial environments. Epoxy coating offers enhanced protection for chemical and marine environments. Triple-layer plating delivers maximum corrosion resistance for extreme conditions.
Understanding the precise dimensions of Chicago couplings is essential for proper system integration. OMEJA CASTING manufactures Chicago couplings to established industry standards, ensuring interchangeability with existing components.
For Chicago couplings with pipe or hose sizes of one inch and smaller, the two-lug design is universal across all sizes. Critical dimensions include the interior dimension between lugs measuring approximately one and five-eighths inches, which is critical for lug engagement. The inside diameter of the gasket recess is approximately five-eighths of an inch and determines gasket size. The overall height of lugs from the face is approximately five-eighths of an inch, ensuring proper engagement depth. The overall width of the coupling face is approximately one and three-fifths inches, though this may vary slightly between manufacturers. Pin hole location varies to accommodate safety clip installation.
For larger sizes from one and one-quarter inches to two inches, the four-lug design provides additional strength and stability. The interior dimension between lugs is approximately two and eleven-sixteenths inches, providing a larger engagement area. The inside diameter of the gasket recess is approximately one-half inch, which is notably smaller than the two-lug version. The overall height of lugs from the face is approximately three-quarters of an inch, allowing deeper engagement. The overall width of the coupling face is approximately two and nine-sixteenths inches, reflecting robust construction.
OMEJA CASTING offers Chicago couplings with various thread configurations to accommodate global standards. NPT or National Pipe Thread is available in sizes from one-quarter inch through two inches and is the North American standard. BSPT or British Standard Taper is available in sizes from one-quarter inch through two inches for European and Asian markets. BSPP or British Standard Parallel is available in sizes from one-quarter inch through one inch for European hydraulic systems. Barbed hose ends are available in sizes from three-eighths inch through one inch for direct hose connection with clamps.
| Fitting Type | Thread or Hose Size | Overall Length | Hex Size | Approximate Weight |
|---|---|---|---|---|
| Male NPT x Chicago | One-quarter inch NPT | Two and two-tenths inches | Nine-sixteenths inch | Zero point fifteen pounds |
| Male NPT x Chicago | Three-eighths inch NPT | Two and three-tenths inches | Five-eighths inch | Zero point eighteen pounds |
| Male NPT x Chicago | One-half inch NPT | Two and one-half inches | Three-quarters inch | Zero point twenty-four pounds |
| Male NPT x Chicago | Three-quarters inch NPT | Two and eight-tenths inches | Seven-eighths inch | Zero point thirty-five pounds |
| Male NPT x Chicago | One inch NPT | Three and one-tenth inches | One and one-sixteenth inches | Zero point forty-eight pounds |
| Female NPT x Chicago | One-half inch NPT | Two and four-tenths inches | Seven-eighths inch | Zero point twenty-six pounds |
| Barbed x Chicago | One-half inch hose inside diameter | Two and eight-tenths inches | Not applicable | Zero point twenty-one pounds |
| Barbed x Chicago | Three-quarters inch hose inside diameter | Three inches | Not applicable | Zero point thirty-three pounds |
| Barbed x Chicago | One inch hose inside diameter | Three and three-tenths inches | Not applicable | Zero point forty-eight pounds |
OMEJA CASTING ductile iron Chicago couplings are engineered to meet or exceed industry performance standards.
| Configuration | Maximum Working Pressure | Burst Pressure | Test Pressure |
|---|---|---|---|
| Standard Series | One hundred fifty pounds per square inch at seventy-two degrees Fahrenheit | Four hundred fifty pounds per square inch | Two hundred twenty-five pounds per square inch |
| Heavy-Duty Series | Two hundred fifty to three hundred pounds per square inch | Seven hundred fifty to nine hundred pounds per square inch | Three hundred seventy-five to four hundred fifty pounds per square inch |
| High-Pressure Series | Up to three hundred fifty pounds per square inch | One thousand fifty pounds per square inch | Five hundred twenty-five pounds per square inch |
| Configuration | Maximum Vacuum | Temperature Range |
|---|---|---|
| Standard Series | Twenty-nine inches of mercury at seventy-two degrees Fahrenheit | Negative twenty degrees Fahrenheit to positive one hundred sixty degrees Fahrenheit |
| Extended Range | Twenty-eight inches of mercury at elevated temperatures | Negative forty degrees Fahrenheit to positive one hundred eighty degrees Fahrenheit |
| Coupling Size | Equivalent Flow Diameter | Typical Flow Rate at One Hundred Pounds per Square Inch |
|---|---|---|
| One-quarter inch Chicago | Approximately zero point twenty-eight inches | Thirty-five to forty-five standard cubic feet per minute |
| Three-eighths inch Chicago | Approximately zero point forty inches | Seventy to eighty-five standard cubic feet per minute |
| One-half inch Chicago | Approximately zero point fifty-five inches | One hundred twenty to one hundred fifty standard cubic feet per minute |
| Three-quarters inch Chicago | Approximately zero point seventy inches | Two hundred to two hundred fifty standard cubic feet per minute |
| One inch Chicago | Approximately zero point ninety-five inches | Three hundred to three hundred seventy-five standard cubic feet per minute |
The operating temperature range affects both the ductile iron body and the sealing gasket. The ductile iron body itself has material capability from negative forty degrees Fahrenheit to positive five hundred degrees Fahrenheit. Standard gasket material of Buna-N operates from negative twenty degrees Fahrenheit to positive one hundred eighty degrees Fahrenheit. High-temperature gasket material of Viton operates from zero degrees Fahrenheit to positive four hundred degrees Fahrenheit. Low-temperature gasket material of Silicone operates from negative sixty-five degrees Fahrenheit to positive three hundred fifty degrees Fahrenheit.
One of the most valuable features of Chicago couplings is their designed-in interchangeability. However, understanding the nuances of compatibility is essential for reliable system performance.
The market contains several coupling types that appear similar to Chicago couplings but are not interchangeable. Key differentiators include lug count, compatible types, and identification features. True Chicago or Air King couplings use two or four lugs with a distinctive backwards J shape where one side of each lug is enclosed. All true Chicago couplings are compatible with each other. European universal couplings use two or four lugs but are only compatible with other European universal couplings and may have DIN markings or metric threads. Minsup or Sure-Lock couplings use two or four lugs but are only compatible with the same brand, featuring an Australian or Asian design that is visually similar but not compatible. Sandblast quick couplings use two lugs and are only compatible with the same type, typically found in larger sizes of one and one-quarter inches and above with a two-lug design.
If you are unsure whether your existing couplings are true Chicago type, OMEJA CASTING recommends several verification methods. Visual inspection should confirm that true Chicago couplings have one side of each lug enclosed, forming a backwards J shape when viewed from the side. Dimensional check involves measuring the interior dimension between lugs, which for true two-lug Chicago couplings measures approximately one and five-eighths inches. Test mating with a known genuine Chicago coupling, if possible, provides definitive confirmation. Thread identification reveals that NPT or BSP threads typically indicate true Chicago, while metric threads often indicate non-compatible types.
OMEJA CASTING Chicago couplings are manufactured to dimensional standards that ensure compatibility with Dixon Air King couplings, legacy American-made Chicago couplings, and major industrial brands following the original Air King specification.
A key feature of the Chicago system is that different size couplings will mate mechanically. However, users should be aware that the connection will be secure with lugs fully engaging, but flow will be restricted by the smaller of the two coupled sizes, and gasket alignment may not be optimal when mixing significantly different sizes.
The robust construction and universal design of OMEJA CASTING ductile iron Chicago couplings make them suitable for demanding applications across multiple industries.
Chicago couplings are perhaps most famously associated with heavy construction tools. Jackhammers and pneumatic breakers represent the original application for Chicago couplings, where frequent hose changes and rough handling demand maximum durability. Concrete vibrators require reliable connections in wet, abrasive environments. Air compressor distribution systems use Chicago couplings for main air lines feeding multiple tools on job sites. Paving breakers operate in high-vibration applications requiring secure locking.
The extreme conditions of mining operations demand the strength of ductile iron. Rock drilling applications use high-pressure air for drifters and drills. Dust suppression systems require reliable water and air mist connections. Ventilation systems utilize large-diameter Chicago couplings for auxiliary fans. Safety equipment including backup air systems requires absolute reliability.
Manufacturing facilities benefit from Chicago couplings' durability and quick-change capability. Assembly lines require rapid tool changes without wrenches. Foundries demand heat and impact resistance that ductile iron provides. Heavy equipment manufacturing involves high-cycle applications. Paint spray booths need reliable connections for spray equipment.
Automotive facilities require fittings that withstand oils and constant use. Tire centers need high-volume inflation applications. Body shops use paint guns and sanders with Chicago couplings. Service bays require multiple air tools throughout the facility. Truck fleet maintenance facilities have heavy-duty requirements.
Abrasive environments demand the wear resistance of ductile iron. Abrasive blast equipment uses high-pressure air and media handling. Blast pots require critical connections between pot and hose. Surface preparation operations involve rugged field applications.
Proper installation and maintenance maximize the lifespan and performance of your OMEJA CASTING Chicago couplings.
First, prepare the threads by ensuring they are clean and free from debris. For tapered threads such as NPT or BSPT, apply appropriate sealant in the form of PTFE tape or pipe dope to the male threads only, leaving the first thread clear to prevent sealant from entering the system.
Second, tighten correctly using the wrench flats provided, never by gripping the coupling head. Tighten to manufacturer specifications of ten to fifteen foot-pounds for one-quarter inch and three-eighths inch NPT, twenty to twenty-five foot-pounds for one-half inch NPT, thirty to thirty-five foot-pounds for three-quarters inch NPT, and forty to forty-five foot-pounds for one inch NPT.
Third, avoid over-tightening as it can distort the coupling face, affecting gasket sealing. OMEJA CASTING's ductile iron construction resists distortion better than softer materials, but proper torque remains important.
First, cut the hose squarely using a sharp utility knife or hose cutter for a clean, square end. Second, lubricate by applying a small amount of soapy water or hose lubricant to the barb for easier insertion. Third, insert fully by pushing the hose onto the barb until it bottoms out against the coupling shoulder. Fourth, secure with clamps using band-and-buckle clamps or worm-gear clamps rated for the application pressure, positioning clamps between barb ridges for maximum grip. For high-pressure or whip-critical applications, double-clamp using two clamps per connection for safety.
The gasket is the most critical sealing component and requires regular attention. Inspection should occur before each use to check for cuts, tears, compression set, or foreign material. Cleaning involves wiping the gasket surface and mating face clean with a lint-free cloth. Replacement should occur at the first sign of wear, as gaskets are inexpensive insurance against leaks. Proper seating must be verified to ensure the gasket sits flush in its recess before connection.
The locking sleeve mechanism benefits from periodic lubrication. Frequency should be every three to six months in normal use and monthly in dirty environments. Lubricant type should be light machine oil or silicone spray, avoiding heavy grease that attracts dirt. Application involves applying to the sleeve contact surfaces and working the mechanism several times.
When not in use, protect Chicago couplings from damage by installing protective caps on open ends, storing in clean dry areas, and avoiding dropping or impact damage to lug faces.
While Chicago couplings are robust and reliable, understanding their safety features and limitations is essential for safe operation.
The automatic locking sleeve uses a spring-loaded mechanism that automatically engages when the coupling reaches the locked position, preventing accidental disconnection due to vibration or hose movement. Visual confirmation is achieved when the coupling faces are flush with no gap visible and the sleeve is fully returned to its forward position. Secondary safety clips are available as many Chicago couplings include a drilled lug to accept a safety clip with lanyard, providing backup retention even if the primary locking mechanism fails.
Warning: Chicago couplings do NOT contain an automatic shut-off valve. When disconnected, the air supply continues to flow from the open coupling. Always shut off the air supply before disconnecting any Chicago coupling.
Hose whip prevention requires that a disconnected hose under pressure can whip dangerously. Always shut off the air supply at the source, bleed pressure from the line, and then disconnect the coupling.
Pressure release must be performed before disconnecting by relieving downstream pressure. The quarter-turn mechanism can be difficult to operate under full system pressure, and sudden release can cause the coupling to separate violently.
Personal protective equipment including safety glasses should always be worn when working with high-pressure air systems.
Inspect couplings before each use to check for damaged lugs, worn gaskets, or cracked bodies. Match properly to ensure you are connecting true Chicago couplings, not look-alikes. Avoid over-pressurization by never exceeding rated working pressure. Replace damaged components and do not attempt to repair cracked or deformed couplings. Use safety clips in applications where accidental disconnection could cause injury or damage.
A Chicago coupling, also known as an Air King coupling, is a universal air hose fitting characterized by its two-lug or four-lug claw-style head and quarter-turn locking mechanism. It is called Chicago because it was historically manufactured in Chicago, and the name stuck as the design became an industry standard.
Yes. One of the unique features of the Chicago coupling system is that different sizes will physically connect to each other. The lugs engage regardless of the underlying pipe or hose size. However, flow will be restricted by the smaller of the two couplings, and gasket alignment may not be optimal when mixing significantly different sizes.
Our standard Chicago couplings are rated for one hundred fifty pounds per square inch maximum working pressure at seventy-two degrees Fahrenheit. We also offer heavy-duty configurations rated up to three hundred pounds per square inch. Always verify the pressure rating for your specific model and never exceed maximum working pressure.
Ductile iron offers superior strength-to-weight ratio, excellent vibration damping, exceptional fatigue resistance, and enhanced safety through gradual deformation under extreme overload rather than catastrophic failure. While brass may be adequate for light-duty applications, OMEJA CASTING's ductile iron Chicago couplings excel in demanding industrial environments where reliability and longevity are paramount.
True Chicago couplings have a distinctive backwards J shaped lug with one side enclosed. The interior dimension between lugs on two-lug versions should measure approximately one and five-eighths inches. If your coupling has metric threads or DIN markings, it may be a European universal type that is not compatible with true Chicago couplings.
We manufacture Chicago couplings in sizes from one-quarter inch through two inches, with both NPT and BSP threads, as well as barbed ends for direct hose connection. Two-lug designs are used for sizes one inch and smaller. Four-lug designs are used for one and one-quarter inches and larger.
Leakage typically occurs due to worn or damaged gaskets, which should be replaced at the first sign of wear. Contamination requires keeping mating surfaces clean. Incomplete locking necessitates ensuring full quarter-turn and sleeve engagement. Gasket misalignment requires verifying the gasket is properly seated in its recess. Face damage requires protecting lug faces from impact.
Yes, Chicago couplings are suitable for water and other non-corrosive fluids within the rated pressure and temperature ranges. However, they are not recommended for hazardous materials or applications requiring automatic shut-off upon disconnection, as they contain no integral valve.
Standard Chicago couplings operate from negative twenty degrees Fahrenheit to positive one hundred sixty degrees Fahrenheit. With appropriate seal materials, this range can be extended. The ductile iron body itself can withstand much wider temperature extremes, but the gasket material determines the practical operating range.
No. Threaded connections install with standard wrenches on the provided hex surfaces. Barbed connections require only a hose clamp and common screwdriver or nut driver. The coupling mechanism itself operates without tools.
Gasket replacement frequency depends on usage intensity and operating conditions. For light use, inspect annually and replace every two to three years. For moderate use, inspect quarterly and replace annually. For heavy use, inspect monthly and replace as needed. For any use, replace immediately if cuts, tears, or compression set are visible.
Yes. OMEJA CASTING manufactures Chicago couplings to the original Air King dimensional specifications, ensuring full compatibility with genuine Dixon Air King couplings.
At OMEJA CASTING, we do not simply machine standard stock. We control the entire metallurgical process. Our ductile iron Chicago couplings are produced using precision casting techniques that ensure consistent material properties, dimensional accuracy, and structural integrity. The result is a coupling that delivers performance beyond what generic imported fittings can provide.
Every OMEJA CASTING Chicago coupling undergoes spectrographic analysis verifying chemical composition meets ASTM A536 requirements. Dimensional inspection ensures interchangeability with industry standards. Pressure testing confirms leak-free performance at rated pressures. Surface finish verification guarantees proper plating thickness and coverage.
| Feature | Standard Import Couplings | OMEJA CASTING Ductile Iron |
|---|---|---|
| Material | Variable often recycled steel | Certified ductile iron ASTM A536 |
| Dimensional Consistency | Rough around the edges | Precision machined to specifications |
| Gasket Quality | Unknown compound | Specified compound matched to application |
| Surface Treatment | Minimal | Engineered zinc plating or coatings |
| Quality Control | Limited | Full dimensional and pressure testing |
| Traceability | None | Full material and production traceability |
| Service Life | Variable | Engineered for extended durability |
Our team provides technical assistance for challenging applications including custom configurations for specialized requirements, material and seal selection guidance, troubleshooting support for existing systems, and failure analysis when problems occur.
OMEJA CASTING products meet or exceed international standards. They are compatible with ISO dimensional requirements, meet ASTM A536 Standard Specification for Ductile Iron Castings, undergo pressure testing per ASME guidelines, and are available with certifications for specific industry requirements.
The Chicago coupling has earned its place as the workhorse of heavy-duty pneumatic systems through decades of reliable service. Its elegant universal design, allowing any size to connect to any other with a simple quarter-turn, remains as valuable today as when it was first introduced.
However, the performance of any coupling ultimately depends on the quality of its construction. OMEJA CASTING elevates the Chicago coupling concept by manufacturing from premium ductile iron, combining the strength and durability required for the most demanding industrial applications with precision engineering that ensures reliable, leak-free performance.
Whether you are powering jackhammers on a construction site, operating heavy machinery in a mine, or maintaining air tools in an automotive shop, OMEJA CASTING ductile iron Chicago couplings deliver the reliability, safety, and longevity your operations demand.
When you choose OMEJA CASTING, you are not just purchasing fittings. You are investing in the long-term reliability of your pneumatic systems. Contact our team today to discuss your requirements or request a quote for your specific application.
Contact OMEJA CASTING
For technical specifications, custom quotations, or distribution inquiries:
